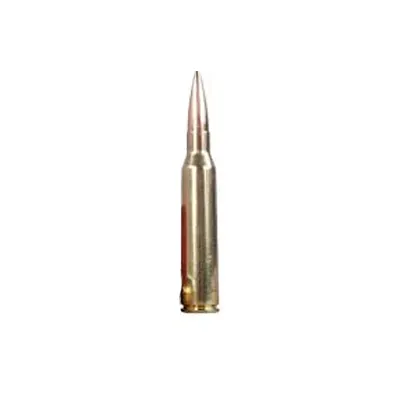

338 Lapua Magnum Ammo
GunCritic Score
80%
Critic Rating
1 Reviews
50%
User Rating
0 Reviews
MSRP:$35.99
Used Price:
$33.29
Sale Price:
$36.99
Ammo Stats
Average Fps
2970 fps
Average Energy
4893 ft-lbf
Ballistic Coefficient
0.74
Sectional Density
0.28 lb/in²
Average Gr
250 gr
Pwdr Chrg Wght
97 gr
Pwdr Chrg Vel
3000 fps
Range
1750 yd
Muzzle Velocity
3000 fps
Muzzle Energy
6780 J
From$29.16
See DealAbout The .338 Lapua Magnum Ammo or .338 LM Ammo for short, is a rimless bottlenecked centrefire cartridge mainly developed for sniper rifles capable of taking out long ranged targets. The loaded 14.93 mm cartridge can penetrate body armor that is considered above military standard at ranges climbing up to 1,000 meters. Although, the maximum effective range of .338 Lapua Magnum Ammo has been recorded at 1,750 meters. Manufacturer The beauty that is .338 Lapua Magnum Ammo was a result of a
...
joint venture between the Finnish rifle manufacturer, SAKO, the British rifle manufacturer, Accuracy International, and the Finnish ammunition manufacturer, more commonly known as Nammo Lapua Oy.
Uses
The .338 Lapua Magnum Ammo is the ultimate centrefire rifle cartridge and since it specializes in long ranged targets, it’s the perfect choice for military snipers. Thanks to the bullet’s long effective range and the accuracy it provides, it’s the first choice for sniper rifle users during wars. However, it’s reputation just doesn’t end in the military, when the target is beyond 1,500 meters, the hunters’ first choice is .338 Lapua Magnum Ammo. Regardless the type of game they are hunting, the choice is always .338 LM Ammo because of the excellent and accurate results it is capable of yielding.
This combat proven rifle round provides incredible performance, penetrating power and precision in the essential role of long range shooting..338 Lapua Magnum For Sale
Technical Data
Caliber
.338 Lapua Magnum
Height
2.77
Average Fps
2970
Average Grain
254
Average Energy
4893
Recoil
3.33
Ballistic Coefficient
0.74
Sectional Density
0.28
Average Gr
250
Pwdr Chrg Wght
97
Pwdr Chrg Vel
3000
Range
1750
Muzzle Velocity
3000
Muzzle Energy
6780
Bullet Drop
0.01
Wind Drift
0.01
Case Material
Brass
Rim Type
Rimless
Bullet Types
Soft Point,Jacketed Hollow Point,Full Metal Jacket
Primer Type
Large Rifle
Bullet Diameter
0.302 in
Land Diameter
0.293 in
Neck Diameter
0.332 in
Base Diameter
0.403 in
Rim Diameter
0.439 in
Rim Thickness
0.054 in
Case Length
69 in
Oal Cartridge Length
93 in
Bullet Weight
250 gr
.338 Lapua Magnum History
The .338 Lapua Magnum was created through a partnership of Sako, Accuracy International and Lapua and was introduced in 1989. It was designed for military applications to penetrate body armor at 1000 meters (1090 yards) with the intention of filling the gap between 7.62x51mmNATO and .50 BMG while offering better accuracy than either combined.
.338 Lapua Magnum Usage
The .338 Lapua Magnum is used by militaries and law enforcement globally in a sniper/counter-sniper role. It has also found use among civilian hunters for big game and for long range shooting competitors. The round has also found some popularity and favor with big game hunters due to its ability to transfer a larger amount of kinetic energy than a .300 WINMAG.

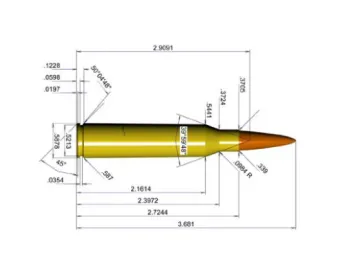

.338 Lapua Magnum Design
The .338 Lapua Magnum is a rimless, bottleneck cartridge with an overall length of 3.681” and a case capacity of 116.24 grains (H2O). It fires a .339” diameter bullet using large magnum rifle primers and a maximum pressure of 60,916 PSI. Standard rifling twist rate is 1:10”.
.338 Lapua Magnum Trivia
The .338 Lapua Magnum’s effective range for a target measuring 17.7 x 35.4” is 1640 yards in warm temperatures at sea level. At freeze point temperatures, this effective range is reduced to 1422 yards and reduced again to 1203 yards in arctic conditions with standard factory match loads using 250 grain bullets with a velocity of 3000 feet per second.

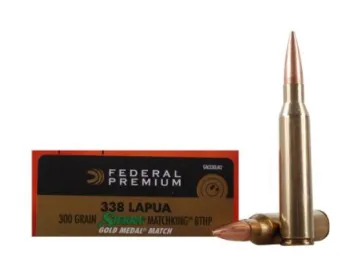

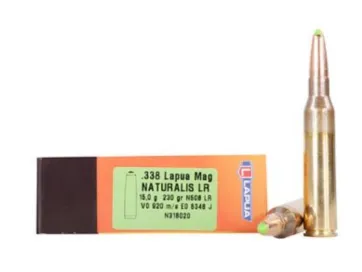

.338 Lapua Magnum Types
Ammunition options for the .338 Lapua Magnum include full metal jacket, open tip match, polymer tipped, and hollow point in weights ranging from 250 grains to 300 grains depending on intended use or tactical application.
GunCritic Score
Want to Sell Your Gun?
.338 Lapua Magnum Specifications
Category
Caliber
.338 Lapua Magnum
Gun Types
Rifle
Case Types
Rimless, Bottleneck
Height
2.77
Average Grain
254
Recoil
3.33
Case Material
Brass
Rim Type
Rimless
Bullet Types
Soft Point,Jacketed Hollow Point,Full Metal Jacket
Primer Type
Large Rifle
Bullet Diameter
0.302 in
Land Diameter
0.293 in
Neck Diameter
0.332 in
Base Diameter
0.403 in
Rim Diameter
0.439 in
Rim Thickness
0.054 in
Case Length
69 in
Oal Cartridge Length
93 in
Bullet Weight
250 gr
